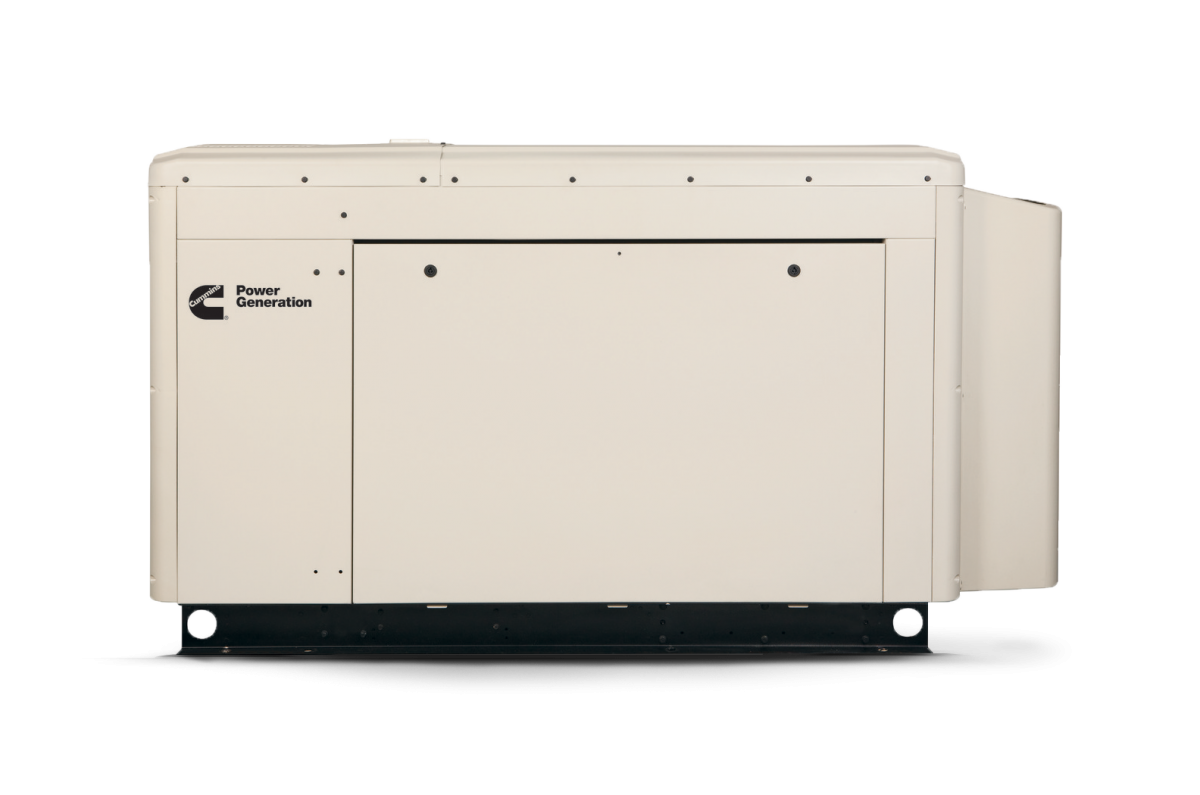

Quiet Connect™ Series

Available in 22-100 kW, ideal for medium to large homes, featuring quiet operation.

  • Advanced Enclosure Design - The aesthetically appealing enclosure incorporates special designs that deliver one of the quietest generators of its kind.
  • Flexible Exercise mode - The innovative, flexible exercise mode enables the generator to exercise at a time, frequency and duration that suits the customer’s preference.
  • Self diagnostics and easy service - The generator is equipped with Cummins PowerCommand electronic control to provide industry-leading self diagnostic capabilities.
Generator Model Hz Voltage Amps Ph Spec Sheet
RS100 60 120/240 417 1 NAS-6171-EN
RS100 60 120/208 347 3 NAS-6171-EN
RS100 60 277/480 150 3 NAS-6171-EN
RS100 60 120/240 301 3 NAS-6171-EN
RS22 60 120/240 91.7 1 NAS-5774-EN
RS22 60 120/208 76.3 3 NAS-5774-EN
RS22 60 120/240 66.2 3 NAS-5774-EN
RS25 60 120/240 104.2 1 NAS-5775-EN
RS25 60 120/208 86.7 3 NAS-5775-EN
RS25 60 120/240 75.2 3 NAS-5775-EN
RS30 60 120/240 125 1 NAS-5776-EN
RS30 60 120/208 104.1 3 NAS-5776-EN
RS30 60 120/240 90.3 3 NAS-5776-EN
RS36 60 120/240 150 1 NAS-5777-EN
RS36 60 120/240 108.3 3 NAS-5777-EN
RS36 60 277/480 54.1 3 NAS-5777-EN
RS36 60 120/208 124.9 3 NAS-5777-EN
RS40 60 120/240 166.7 1 NAS-5778-EN
RS40 60 120/208 138.8 3 NAS-5778-EN
RS40 60 120/240 120.4 3 NAS-5778-EN
RS40 60 277/480 60.2 3 NAS-5778-EN
RS50 60 120/240 208 1 NAS-6168-EN
RS50 60 120/208 173 3 NAS-6168-EN
RS50 60 277/480 75.2 3 NAS-6168-EN
RS50 60 120/240 150 3 NAS-6168-EN
RS60 60 120/240 250 1 NAS-6169-EN
RS60 60 120/208 208 3 NAS-6169-EN
RS60 60 277/480 90 3 NAS-6169-EN
RS60 60 120/240 180 3 NAS-6169-EN
RS80 60 120/240 333 1 NAS-6170-EN
RS80 60 120/208 278 3 NAS-6170-EN
RS80 60 277/480 120 3 NAS-6170-EN
RS80 60 120/240 241 3 NAS-6170-EN
